气动隔膜泵膜片密封圈的物理特性与材料选择
来源: 东晟密封 发布日期: 2023-04-08

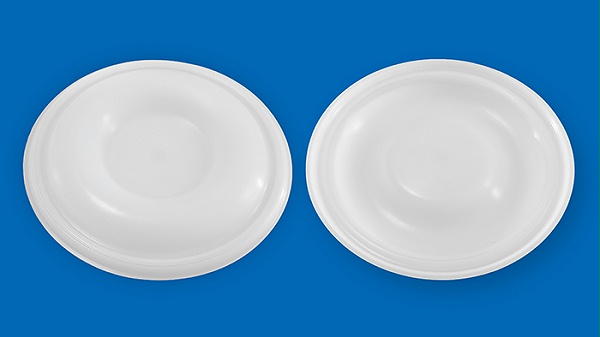

四氟气动隔膜泵膜片密封圈

气动隔膜泵是一种常见的泵类设备,它通过压缩空气来驱动隔膜振动,从而实现液体的输送。东晟密封圈告诉您而气动隔膜泵膜片密封圈则是气动隔膜泵中非常重要的部件,决定了气动隔膜泵的性能和寿命。



气动隔膜泵膜片密封圈作为气动隔膜泵的关键部件,需要具备一定的物理特性。首先,它需要具备良好的耐腐蚀性能,能够承受各种化学介质的侵蚀。其次,它需要具备一定的弹性和耐磨性,能够承受高频振动和长时间的使用。最后,它还需要具备一定的密封性能,能够有效防止泄漏和污染。



目前,市场上常见的气动隔膜泵膜片密封圈材料主要有氟橡胶、氯丁橡胶、硅橡胶和聚四氟乙烯等。其中,氟橡胶具有优异的耐腐蚀性和耐高温性能,适用于输送强酸、强碱等化学介质;氯丁橡胶具有优异的耐磨性和弹性,适用于输送磨蚀性介质;硅橡胶则具有优异的耐高温性能和耐氧化性能,适用于输送高温介质和氧化性介质;聚四氟乙烯则具有优异的耐腐蚀性和耐高温性能,适用于输送极端强酸、强碱和高温介质。



除了材料的选择,气动隔膜泵膜片密封圈的设计也非常重要。合理的气动隔膜泵膜片密封圈结构可以降低泵的能耗和噪音,提高泵的效率和寿命。通常,气动隔膜泵膜片密封圈的设计需要考虑以下几个因素:

1厚度:气动隔膜泵膜片密封圈的厚度需要根据泵的工作条件和介质的性质来确定,过厚的气动隔膜泵膜片密封圈会影响泵的输出流量,而过薄的气动隔膜泵膜片密封圈则容易磨损和破裂。



2孔径:气动隔膜泵膜片密封圈上的孔径大小和数量也需要根据泵的工作条件和介质的性质来确定,过大或过小的孔径都会影响泵的输出流量和泵的寿命。



3强度:气动隔膜泵膜片密封圈的强度需要足够,能够承受高频振动和长时间的使用,同时还需要具备一定的弹性,以保证泵的输出流量和泵的寿命。



4材料:根据介质的性质和泵的工作条件选择合适的材料,以保证气动隔膜泵膜片密封圈的耐腐蚀性、耐磨性和耐高温性。



总之,气动隔膜泵膜片密封圈作为气动隔膜泵的关键部件,需要选用合适的材料和设计合理的结构,才能保证泵的性能和寿命。在实际应用中,需要根据具体的工作条件和介质的性质来选择气动隔膜泵膜片密封圈,以保证泵的安全稳定运行。



以下是英文翻译版

Pneumatic diaphragm pump is a common type of pump equipment that drives diaphragm vibration through compressed air to achieve liquid transportation. Qi Sheng New Materials tells you that the diaphragm seal of pneumatic diaphragm pumps is a very important component in pneumatic diaphragm pumps, which determines the performance and lifespan of pneumatic diaphragm pumps.



As a key component of a pneumatic diaphragm pump, the diaphragm seal of a pneumatic diaphragm pump needs to have certain physical characteristics. Firstly, it needs to have good corrosion resistance and be able to withstand the erosion of various chemical media. Secondly, it needs to have a certain degree of elasticity and wear resistance, and be able to withstand high-frequency vibration and long-term use. Finally, it also needs to have certain sealing performance to effectively prevent leakage and pollution.



At present, the commonly used materials for diaphragm seals in pneumatic diaphragm pumps on the market include fluororubber, chloroprene rubber, silicone rubber, and polytetrafluoroethylene. Among them, fluororubber has excellent corrosion resistance and high temperature resistance, suitable for transporting chemical media such as strong acids and alkalis; Neoprene rubber has excellent wear resistance and elasticity, suitable for conveying abrasive media; Silicone rubber has excellent high-temperature resistance and oxidation resistance, suitable for conveying high-temperature and oxidizing media; PTFE has excellent corrosion resistance and high-temperature resistance, suitable for transporting extremely strong acids, alkalis, and high-temperature media.



In addition to material selection, the design of diaphragm seals for pneumatic diaphragm pumps is also very important. A reasonable diaphragm seal structure for pneumatic diaphragm pumps can reduce pump energy consumption and noise, and improve pump efficiency and lifespan. Usually, the design of diaphragm seals for pneumatic diaphragm pumps needs to consider the following factors:



1. Thickness: The thickness of the diaphragm seal of the pneumatic diaphragm pump needs to be determined based on the working conditions of the pump and the properties of the medium. An excessively thick diaphragm seal of the pneumatic diaphragm pump will affect the output flow of the pump, while an excessively thin diaphragm seal of the pneumatic diaphragm pump is prone to wear and tear.

2. Aperture: The size and quantity of the aperture on the diaphragm seal of a pneumatic diaphragm pump also need to be determined based on the working conditions of the pump and the properties of the medium. Excessive or insufficient aperture can affect the output flow rate and pump life.

3. Strength: The strength of the diaphragm seal of the pneumatic diaphragm pump needs to be sufficient to withstand high-frequency vibration and long-term use, while also having a certain degree of elasticity to ensure the output flow rate and pump life.

4. Material: Select appropriate materials based on the properties of the medium and the working conditions of the pump to ensure the corrosion resistance, wear resistance, and high temperature resistance of the diaphragm seal of the pneumatic diaphragm pump.



In summary, as a key component of a pneumatic diaphragm pump, the diaphragm seal of the pneumatic diaphragm pump requires the selection of appropriate materials and a well-designed structure to ensure the performance and lifespan of the pump. In practical applications, it is necessary to select the diaphragm seals of pneumatic diaphragm pumps based on specific working conditions and the properties of the medium to ensure the safe and stable operation of the pump.



气动隔膜泵膜片,膜片,材料选择,气动隔膜泵密封圈,密封圈
